Lace Music Products® is now offering their new Pickguard Plus™ models in addition in the Lace line of pre wired pickguards.

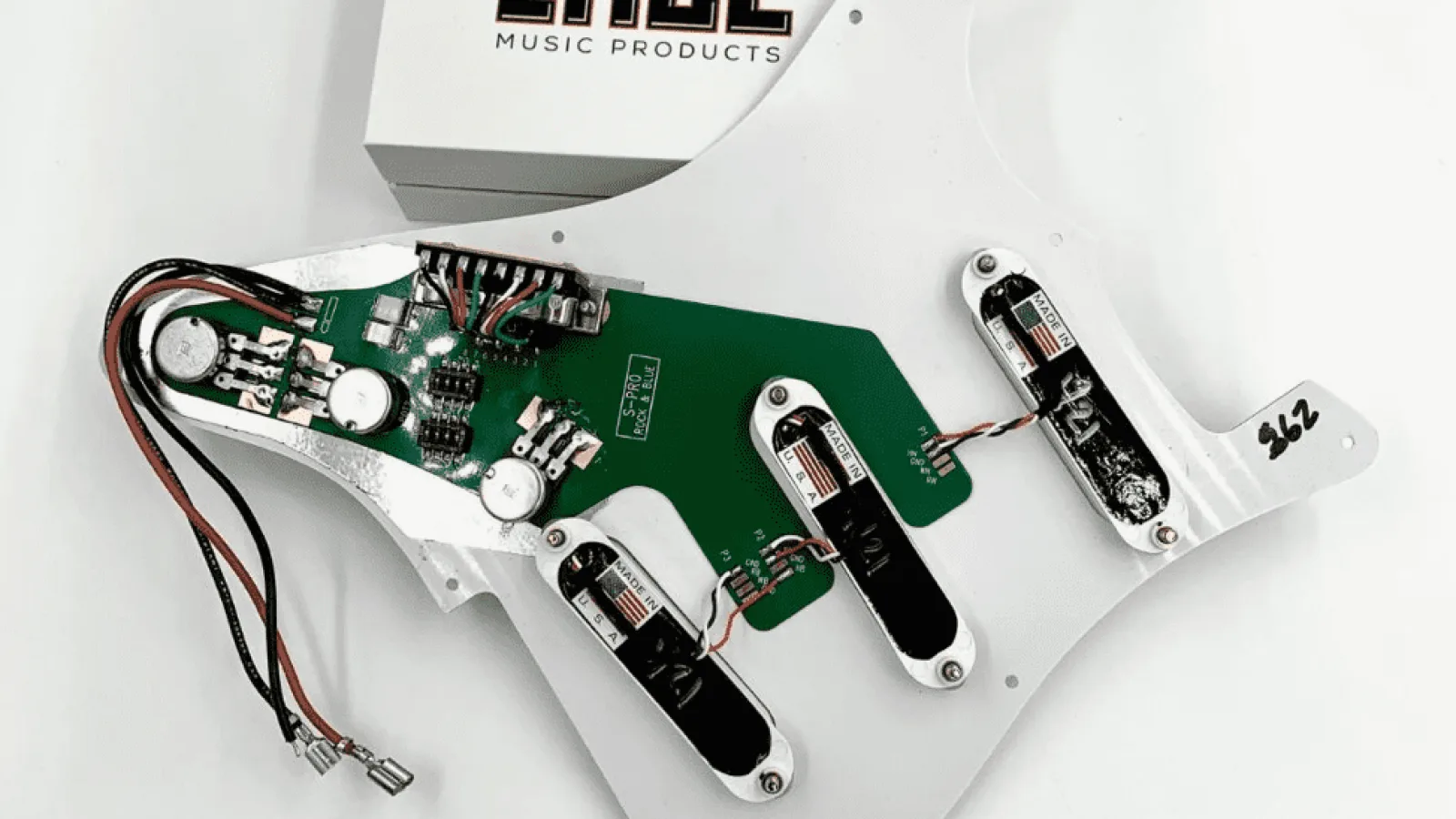

The Pickguard Plus™ offers a new unique “passive” circuitry in a form of an ultra-thin (.25mm) circuit board installed in Lace’s pre-wired pickguard. This new non-active design boosts options available only to previous active systems requiring a battery. No battery is required to use this circuit board design.
This circuitry allows the guitar to having an option of using either a .022 capacitor, .047 capacitor or combining both for a .069 capacitor.
In addition, the pickup positions can be used in multiple configurations; all 3 pickups on, bridge and neck only and many more. Further a tone knob is now used as a blender that can for example blend in the bridge pickup in with any pickup or pickup combination. All optional configurations are adjustable thru micro switches on the board itself.
The second tone pot is now used as a tone change control rather than a roll off switch. Circuitry is available for 3 single coils, 2 humbuckers and 2 single coils and one humbucker. Pickguard Plus™ is available now in black or white 3 ply material.
Pickup options are 3 Lace® Golds and an Ultimate Triple set; featuring a Red, Blue and Silver Lace Sensor.
Pickguard Plus upgrade also eliminates any noise generated from the pickups.
For the DIY player, the circuit board which offer a quick solder connector is also available. The built in zero noise circuit will eliminate any noise associated with any type of passive magnetic pickup that is installed with it.
Retail Pricing for the Pickguard Plus is $349.99
Retail Pricing for the Plus circuit board is $ 69.99
www.lacemusic.com
