Offering powerful features – including a built-in effects generator, soft-patchable controls, and RDM compatibility – the new DMX FX512 from ADJ is an innovative hardware DMX controller that puts intuitive control and powerful programming tools into the hands of even inexperienced users. Designed to streamline workflow and unleash creativity, it is ideal for use in small bars, nightclubs, churches, and entertainment venues, as well as for event production applications.
Facilitating control of a full DMX universe, the DMX FX512 is designed for use with up to 32 separate lighting fixtures, utilizing up to 18 channels each (maximum total channels: 512). Captivating light shows can be crafted using 32 programmable Scenes and 32 Chases, each with up to 100 steps. As many as five chases can then be played back simultaneously, allowing the creation of impressive, multifaceted light shows.
Programming is made easy by the internal effects generator, which offers nine movement effects that can be easily customized by setting the speed, range, offset, and delay between fixtures to quickly generate impressive effects. In addition, there are also seven color effects for use with RGB LED fixtures that allow impressive color chases to be created instantly. It is also possible to run a movement effect and color effect on the same fixture simultaneously, allowing for impressive results to be created very easily.

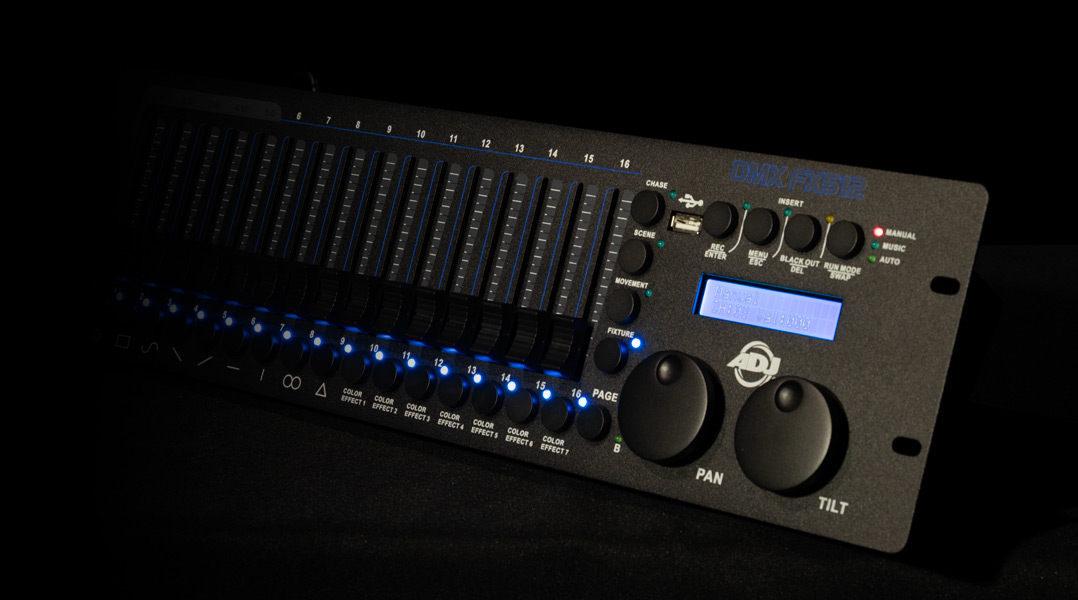

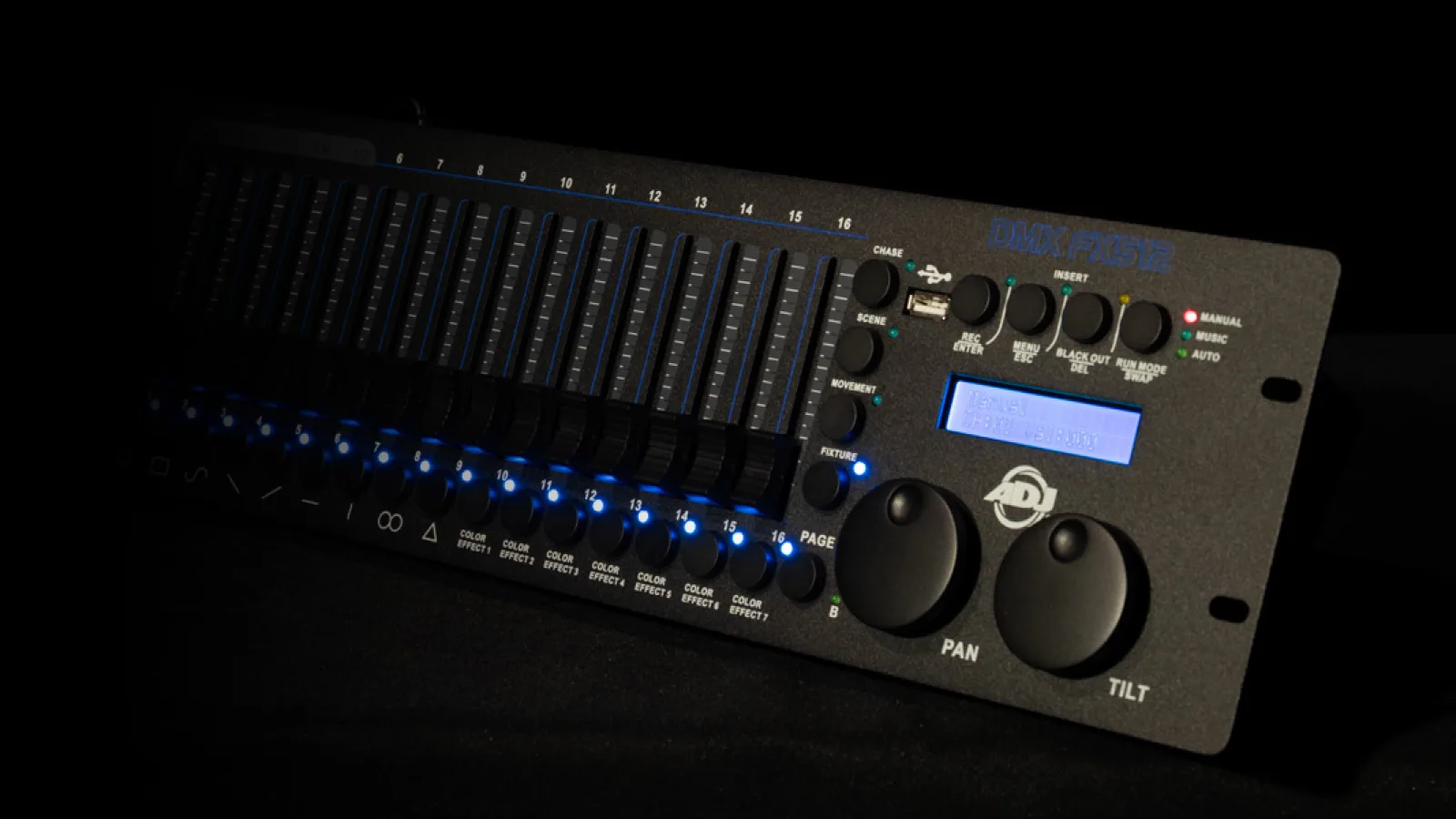

The control interface is intuitive, featuring a digital display, 16 channel control faders, dedicated Pan/Tilt wheels, and 16 Effect/Fixture selection buttons. The faders and control wheels are soft-patchable to allow configuration of the controls to the relevant channels for each fixture. This ensures compatibility with a wide range of fixtures from any manufacturer.
Integration of the RDM (Remote Device Management) protocol allows the DMX address and channel mode of compatible fixtures to be configured remotely. It allows a lighting system to be set up, quickly and easily, directly from the DMX FX512 without the need to address each lighting fixture individually using its onboard menu interface. This not only saves valuable time during setup but also ensures a hassle-free and error-free address assignment process.
Compact and lightweight, the DMX FX512 measures 134mm x 482mm x 68.9mm and weighs only 2.13kg. It is presented in a standard 19” rackmount format, utilizing 3U of rack space. It also features rubber feat, allowing tabletop operation without a rack case. On the rear panel is a 5-pin DMX output socket, low voltage power input (for use with the supplied adapter) and a power switch. There is also a USB socket on the top panel, which can be used to back up stored Scenes and Chases as well as for future firmware updates.
“The DMX FX512 was built with real-world usability in mind,” comments Alfred Gonzales, ADJ USA’s Director of Sales. “From its intuitive layout and soft-patching capabilities to the powerful effects engine and RDM integration, this controller is a compact powerhouse that simplifies setup and programming while enhancing creative potential.”
The DMX FX512 is available now from ADJ USA and is due to begin shipping from ADJ Europe in August 2025.
